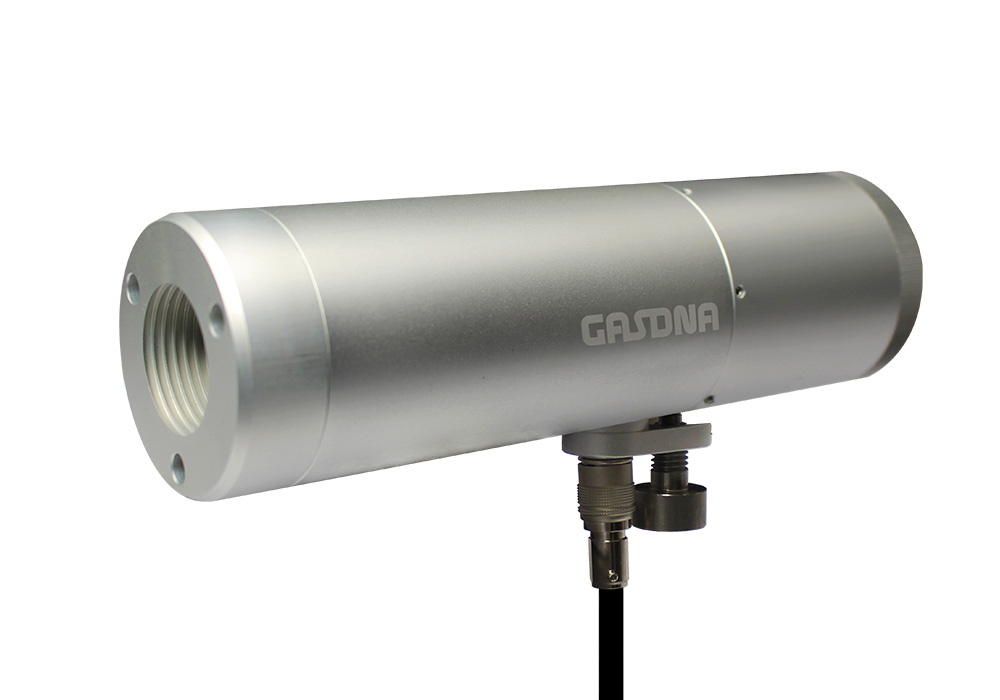

IR-VIEW

Offer Standard Software

It can measure from 800℃ to maximum 2400 ℃ in the distance of 200:1 D:S (Distance to Spot).

Temperature Range: 500~1200℃, 1000~3000℃

Input power: 12~30V

Output:4-20mA, 485 Communication

Wavelength Rang: 1.1㎛, 1.0㎛

IR-80

Offer Standard Software

Temperature Range: 500~1800℃,300~650℃,150~750℃, 70~400℃

Input power: 12~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 0.9~1.6㎛, 0.85~1.1 ㎛, 2.6 ㎛

Brazing-3.9

Offer Standard Software

Temperature Range: 300~1300℃

Input power: DC 20~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 3.9 ㎛

Glass-5.2

Offer Standard Software

Temperature Range: 250~1300℃

Input power: DC 20~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 5.2 ㎛

Film-7.9

Offer Standard Software

Temperature Range: 0~500℃

Input power: DC 20~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 7.9 ㎛

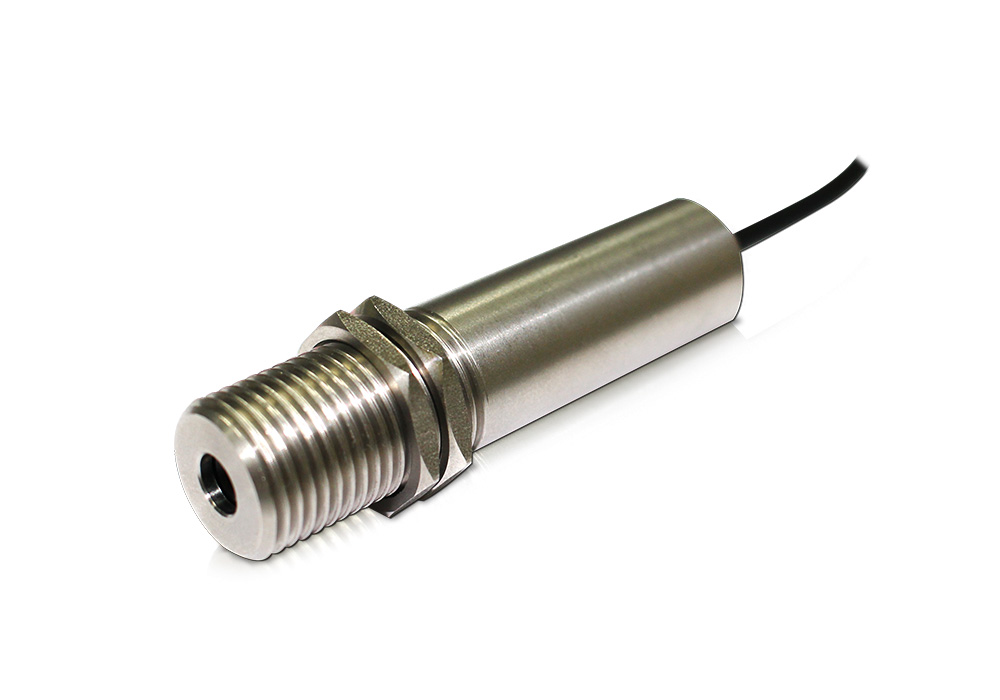

IR-22

Offer Standard Software

Temperature Range: -60~380℃

Input power: 12~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 8~14㎛

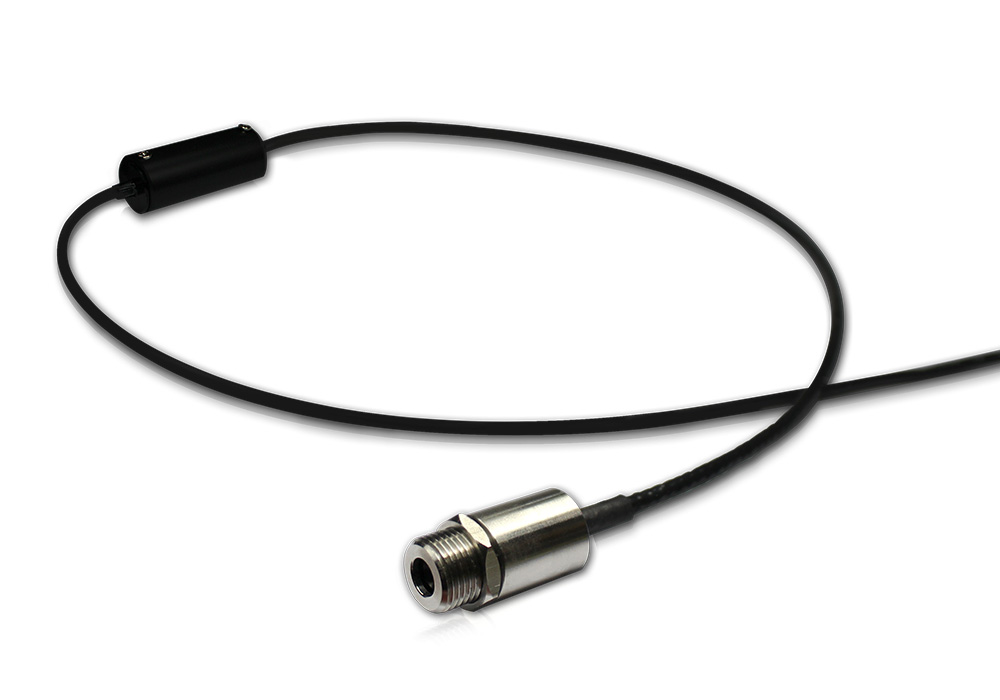

IR-compact

Offer Standard Software

Temperature Range: -60~380℃

Input power: 12~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 8~14㎛

10-IRman

Offer Standard Software

Temperature Range: -20~1000℃

Input power: DC 20~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 8~14 ㎛

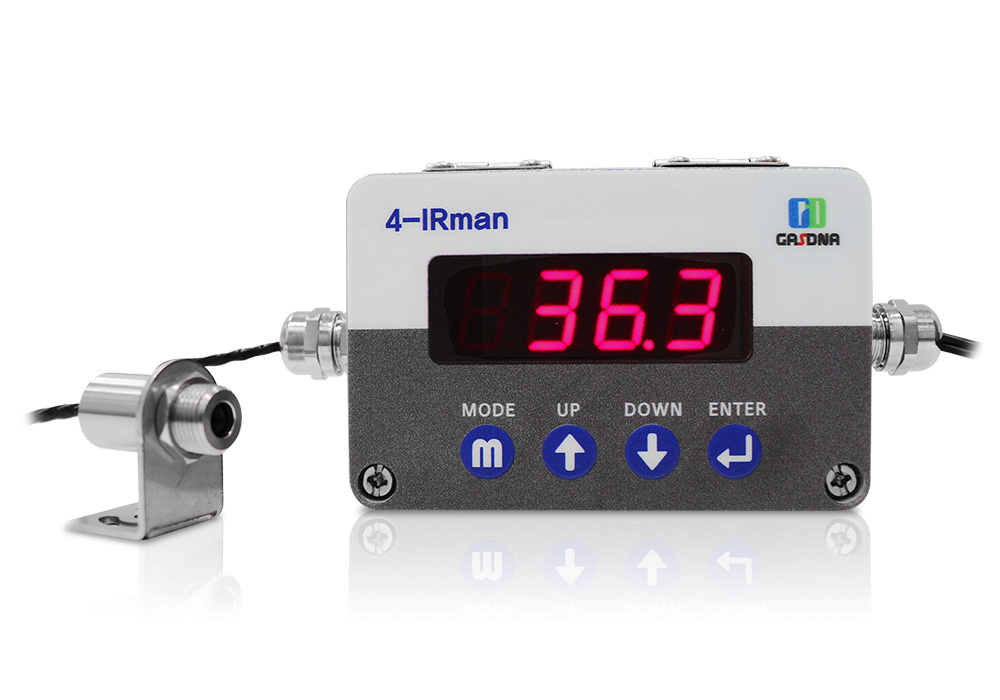

4-IRMAN

Offer Standard Software

Temperature Range: -60~380℃

Input power: 20~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 8~14㎛

6-IRman

Offer Standard Software

Temperature Range: -20℃~600℃

Input power: 12~24V

Output: 4-20mA, 485 Communication

Wavelength Rang: 8~14㎛

IR-40

Offer Standard Software

Temperature Range:-20℃~1000℃

Input power: 12~24V

Output: 4-20mA, 485 Communication

IR-20

Temperature Range: 0~400℃

Input power: 12~24V(2write)

Output: 4-20mA

Wavelength Rang: 8~14㎛

2IGA-100

Offer Standard Software

2Color InGaAS

Temperature Range: 400~1200℃

Input power: 12~24V

Output:4-20mA, 485 Communication

Wavelength Rang:1.0~1.6㎛

SS-100

Offer Standard Software

Temperature Range: 800~2400℃

Input power: 12~ 24V

Input: 4-20mA, 485 Communication

Wavelength Rang:0.85~1.1㎛

IR-80-H

Offer Standard Software

Temperature Range:500~1800℃, 300~650℃, 150~750℃

Input power: 12~24V

Output:4-20mA, 485 Communication

Wavelength Rang:0.9~1.6㎛

Airpurge

Accessories

Air purge removes dust around infrared thermometer.

It can be applicable to IR-20, IR-20-4W, IR-21, IR-40, IR-80, IR-80-H, 6-IRman, 2S-IR-100, 2IGA-IR-100

Bracket

Accessories

Bracket is to fix infrared thermometer.

Water-cooling jacket

Accessories

Water-cooling jacket is to use under the high temperature environment.

It makes infrared thermometer cool down and working properly.

It can be applicable to IR-40, IR-80, IR-80-H, 2S-IR-100, 2IGA-IR-100

Converter

Accessories

Converter is to use to communicate with computer.

It can be applicable to IR-21, IR-40, IR-80, IR-80-H, 6-IRman. 2S-IR-100, 2IGA-IR-100
