DI-20

Multi Input Indicator

Input Type: TC (B, R, S, K, E, J, T, N),RTD (DIN PT1, DIN PT(0.1), JIS PT), DC (mV, V, mA)

Input resistance: Volt – 400KΩ, mA - 250Ω, others - 1MΩ

Output signal: DC4-20mA / 600Ω

Power voltage: AC85V~264V

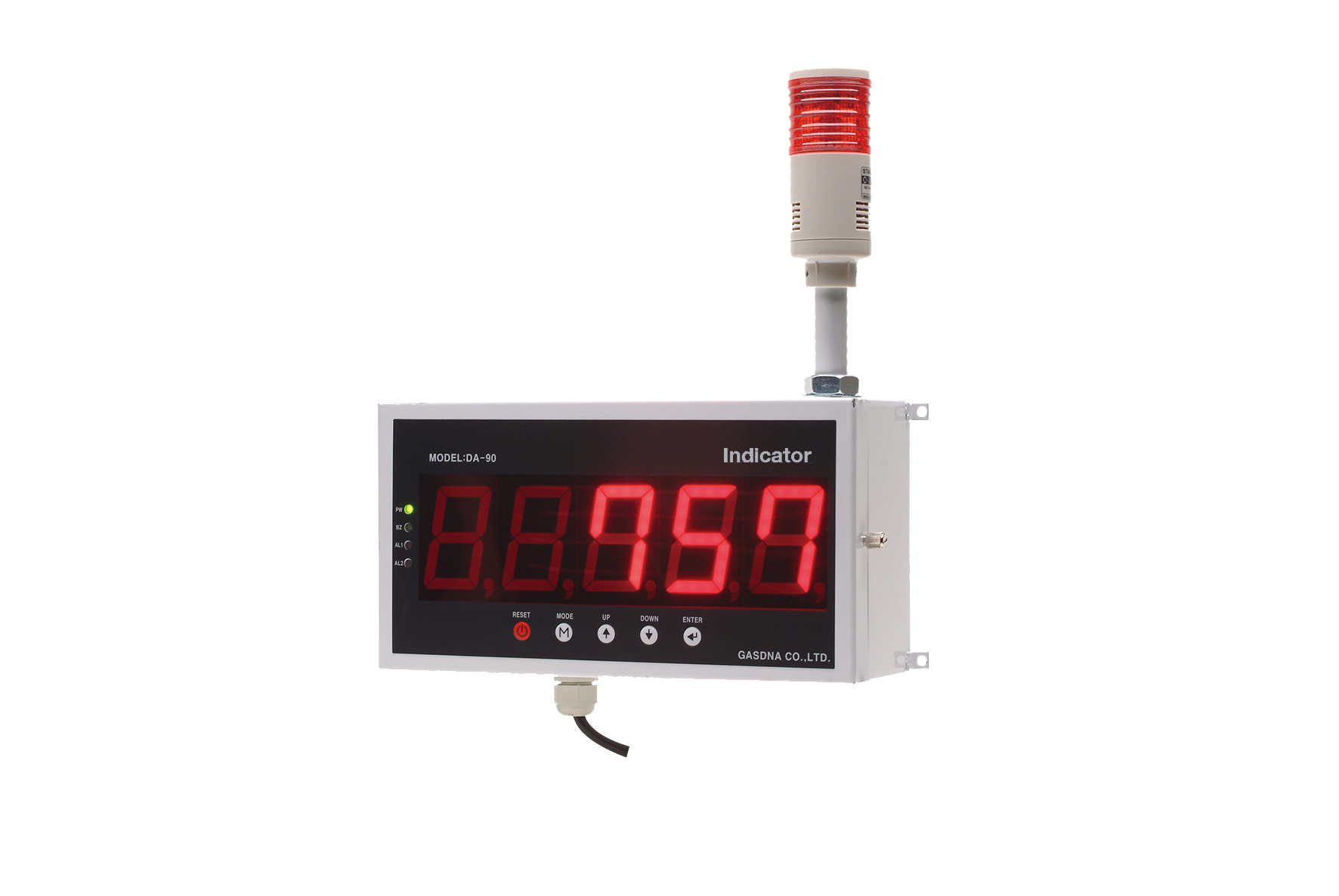

DA-90

One-point Type (Connectable Detectors - 1 unit) / 1 circuit

Display: FND 5 DIGIT (2.3 Inch)

Input Power: AC230V/60Hz

Output Power: DC24V(750㎃)

Input Signal: 4-20㎃ DC/F.S

Output Signal: 4-20㎃ DC/F.S

Alarm Output: 2 Step (HIGH/LOW) Alarm Relay Contact

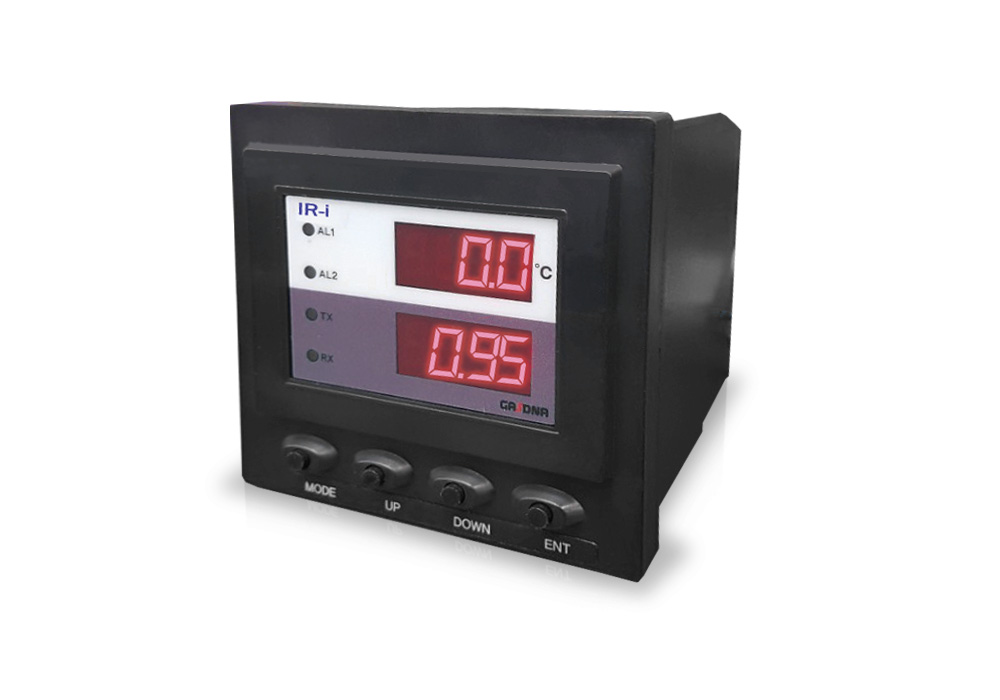

IR-i

Input: DC(4~20mA) or RS-485(Baudrate 9,600bps)

Accuracy: ≤ ± 0.2%Full Scale

Sensor Power: DC 24V 50mA

Input Power: AC 110V ~ 240V/60Hz
