IR-View

IR-View

Features
IR-View non-contact infrared thermometer measures the infrared wavelength emitted from the target and converts it to standard current signal output (4~20mA) or RS-485 communication signal output.
The view lens of IR-View makes it easy to focus the high temperature target that is difficult to see the focusing spot.
It can measure from 800℃ to maximum 2400 ℃ in the distance of 200:1 D:S (Distance to Spot).
Emissivity is 0.75 ~ 1.25 adjustable in 2-color mode.
Ordering information
Ordering information
MODEL Description
Code A Temperature Range
1 800~1800℃
2 800~2400℃
Z Other
Code B Output
M DC 0~20Ma
N DC 4~20mA
V DC 1~5V
Z Other
Code C Cable Length
1 3m Cable
Z Other
Accessory
Accessory
Name Shape Usage Remark

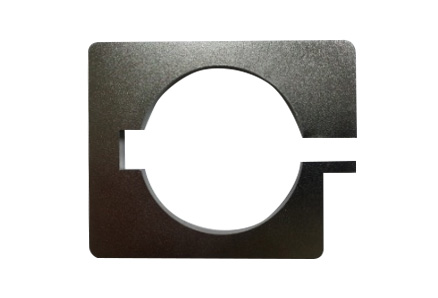

Fixing nut 부착용 너트 Sensor fixing nut Basic accessory

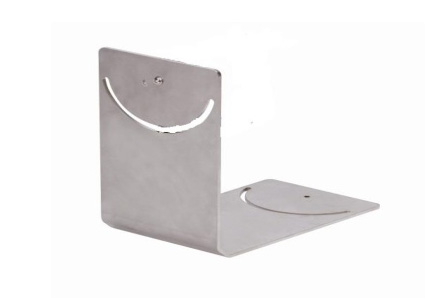

Mounting bracket 고정 브라켓 Sensor mouning bracket Option
Specification
Specification
Measured range 800~2400℃
Accuracy ±1℃/F.S or 1℃
Error Range ±1%
Field of view(D:S) 200:1
Wavelength Rang 1.1㎛, 1.0㎛
Sensor Type Si
Response Time Less than 0.001sec
Emissivity (one color) 0.10~0.99
Emissivity (two color) 0.75~1.25
Analog output 4~20mA
Communication output RS-485 Communication
Relay Output 1 step- Relay Contact (High/Low)
Power DC 12~24V(Max 200mA)
Operating Temperature 0~80℃
Resolvable Temperature 1℃
Operating Relative Humidity 5~90%
Storage Temperature -30~85℃
International Protection IP65, NEMA 4
External Material AL
Weight 960 g
Cable length 3M, other
