TS-70

TS-70

TS-70 Non contact Temperature + Smoke Detector

Introduction
TS-70 is built-in Non contact Infrared thermometer and smoke sensor.
The most of existing temperature and smoke sensors in markets can detect fire after the heat reach to temperature and smoke detector.
However, TS-70 detects the fire by increased infrared amount and low concentrated smoke in early stage of the fire and enables to prevent the fire in advance.

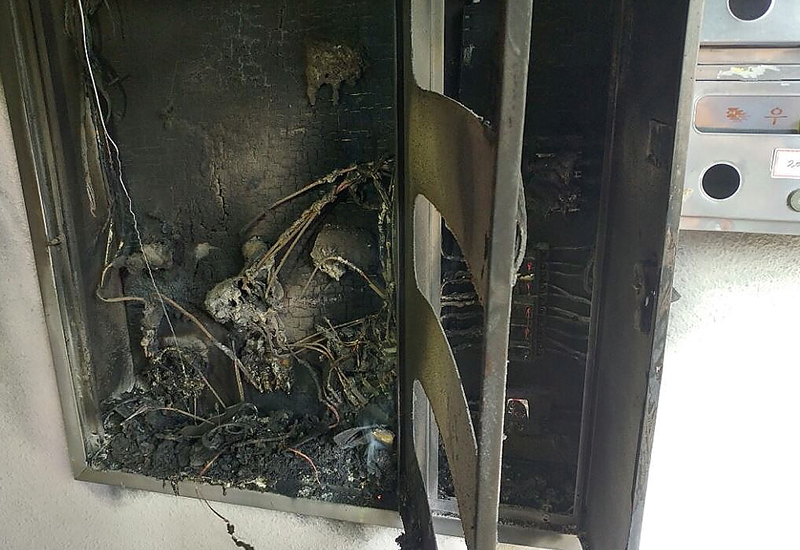

  • 배전반 화재 사진
  • 배전반 화재 사진
  • 배전반 화재 사진
  • 배전반 화재 사진

fire of switchboard TS-70 minimize the damage by early detecting of these fire.

Features
Non contact Infrared thermometer can measure a wide range of temperature from -70℃ to 350℃’
Low Concentrated Smoke Detection
It is designed to support the safety of industrial automation precision equipments so that it is suitable for low concentrated smoke detection
Digital Process
Digital process based on built-in micro processor realizes various artificial intelligent functions which result in more convenient, more accurate, and more efficient detection environment.
Specification
Specification
Non contac Infrare thermomete
Measuring Range -70 ~ 350℃
Device Thermopile (Non contact Infrared measurement)
Optical Resolution 35℃
Optical Spectrum 8~14㎛
Response time 0.3 sec
Relay Output 4-20mA
Specification
Smoke sensor
Detection Principle Ionizations Smoke Chamber
Detection Method Diffusion
Response time Within 3 sec
Relay Output Relay A(DC30V 1A)
Input power DC 22V~26V
Currency consumption 50㎃. Maximum
Operation temperature/humidity -20℃~ 60℃ / 0 ~ 95% RH (Non-Condensing)
Process Digital Process
Temperature setting in factory 50℃
Smoke density 1%
